WET DRAWING SLIPPING MACHINES

Low and High carbon, stainless steel, aluminum, bronze, zinc wires
Perfect wire alignment at the die inlet and outlet

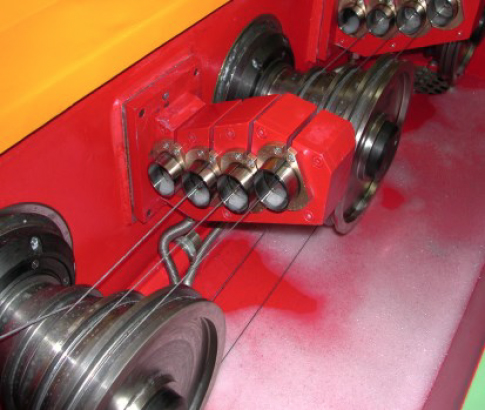

All the dies inside the machine are submerged and, if needing, rotating
All the die holders are directly lubricated in order to keep always clean and cool the die inlet
No return pulleys
Storage lubricant tank easy to clean and specially designed to have high efficiency sedimentation
Compact design
One single motor or two motors to reduce to half the slipping in the submerged section. Third motor in option to have possibility to change the last die reduction
Transmission by timing belts

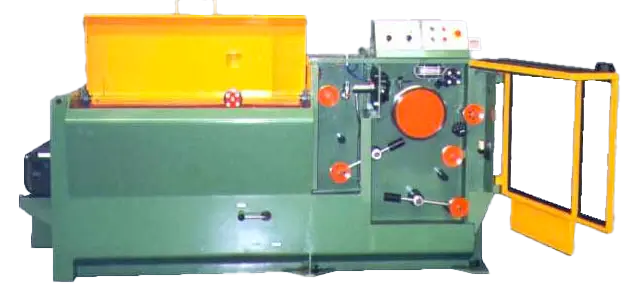

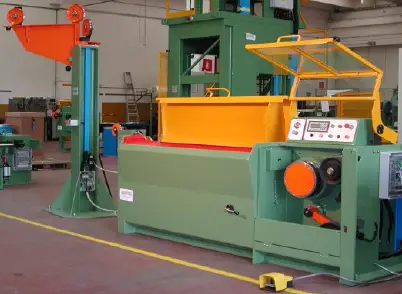

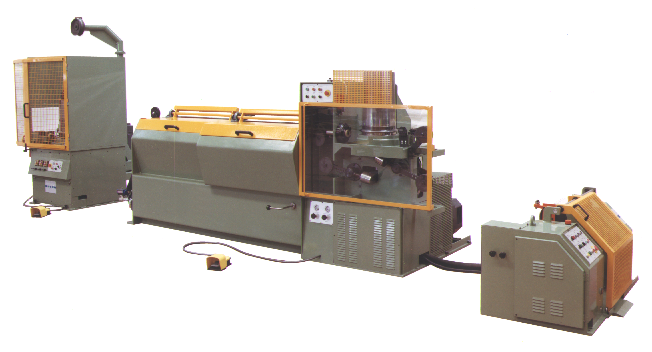

NG-TECH wet drawing machines standard production range

Model	Shafts n.	Drawing dies	speed (m/s max)	wire inlet (mm) 500 N/mm2	wire inlet (mm) 1300 N/mm2	Outlet diam (mm)
TB2A-25	2	11	20	1,5	1,0	0,10-0,40
TB2A-80	2	11	20	2,8	2,2	0,25-1,60
TB3A-25	3	11	25	1,5	1,0	0,10-0,40
TB3A-80	3	11	25	2,8	2,2	0,25-1,60
TB4A-25	4	21	30	2,5	1,8	0,12-0,80
TB4A-80	4	21	25	3,2	2,5	0,40-0,80
TB6A-25	6	25	30	3,0	2,2	0,40-0,80
TB6A-80	6	25	25	3,5	2,2	0,50-1,50

Key Features

Key Features of NG-Tech Wire Technology. Our role is to turn process complexity into control.

Surface condition

Coating adhesion

Dimensional stability

Mechanical consistency

Downstream reliability

When the wire does not perform as expected, the problem is rarely limited to a single step. More often, it is the result of accumulated variability across the process.

Benefits

In wire production, final quality is never accidental.

Final wire quality

Drill deep holes with consistent diameters and straightness — critical in aerospace, automotive, oil & gas, and defense manufacturing.

Surface consistency

Optimized coolant flow and quick change tooling reduce downtime and improve cycle time.

Preparation for coating, plating and heat treatment

High tool life, efficient drilling strategies, and minimal defects contribute to lower total cost of ownership.

Process stability and repeatability

Capable of drilling steels, stainless steels, aluminum, titanium, and exotic alloys with superior results.

Applications

Applications of Wire Technology

Aerospace

Landing gear components
Hydraulic actuators
Structural deep holes
Actuator bodies
Landing gear components

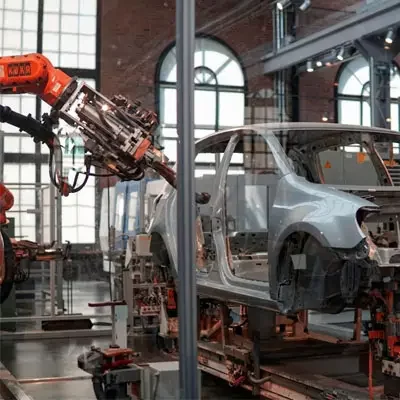

Automotive

Transmission parts
Cylinder blocks
Steering components
Fuel injection system parts
Drive shafts

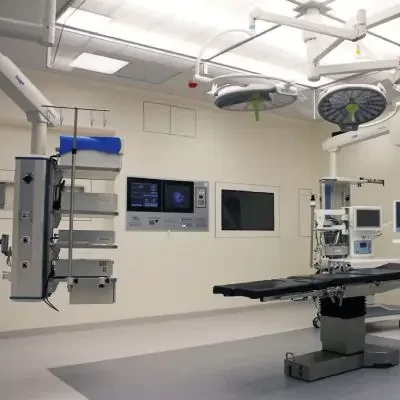

MEDICAL INDUSTRY

Robotic surgery components
Prostheses
Surgical Instruments

Defense & Heavy Engineering

Transmission shafts
Weapon system components

How much are inefficiencies in your wire production process costing you every day?

Contact NG-Tech now to improve immediately, reduce losses, and recover margin, stability, and efficiency.
