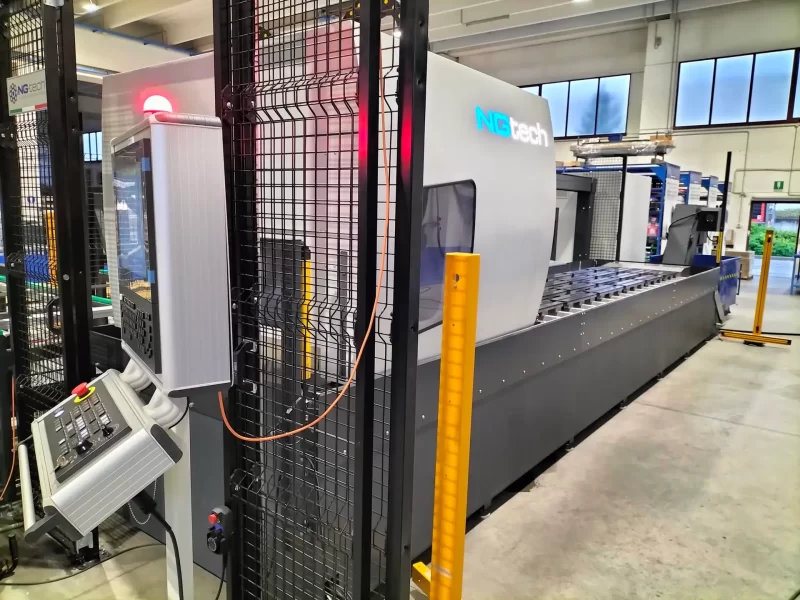

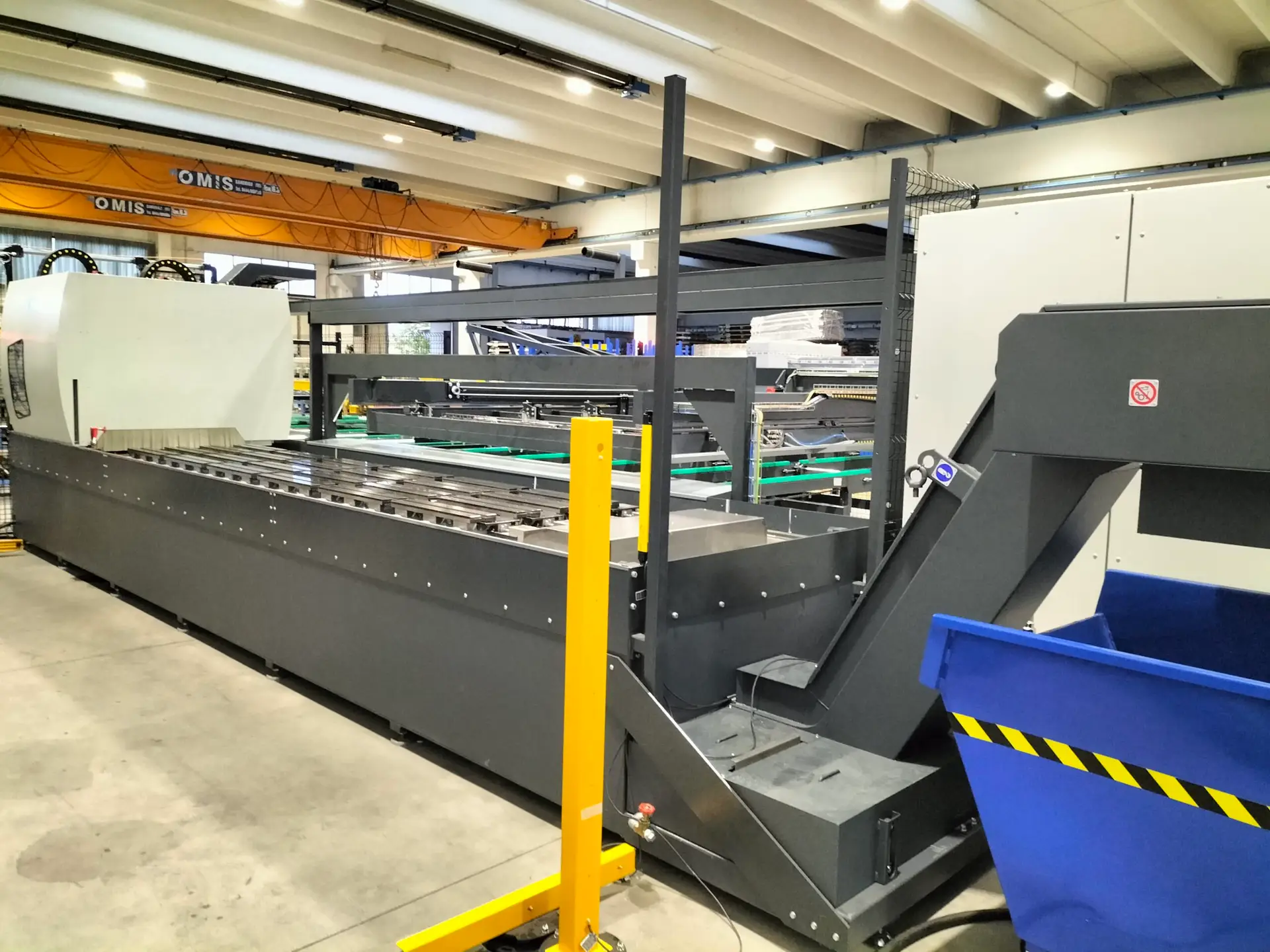

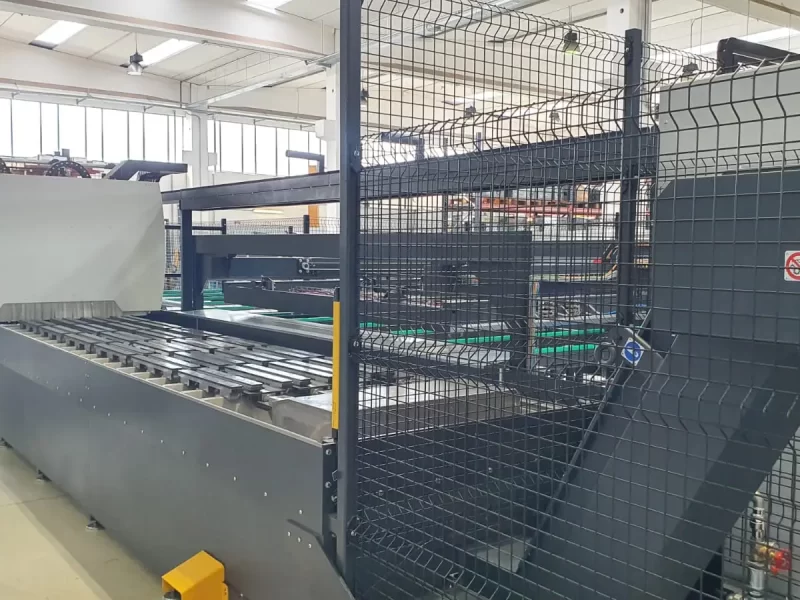

VMS Machine centre with vertical multispindle

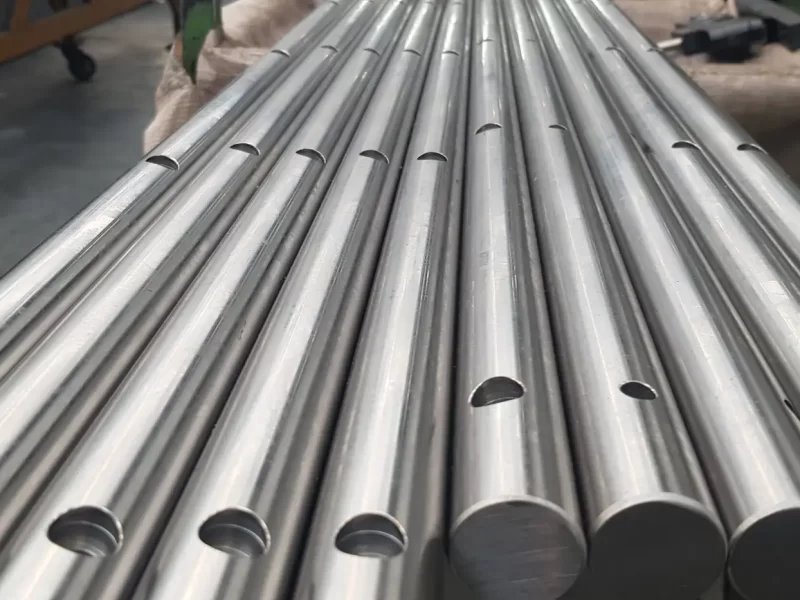

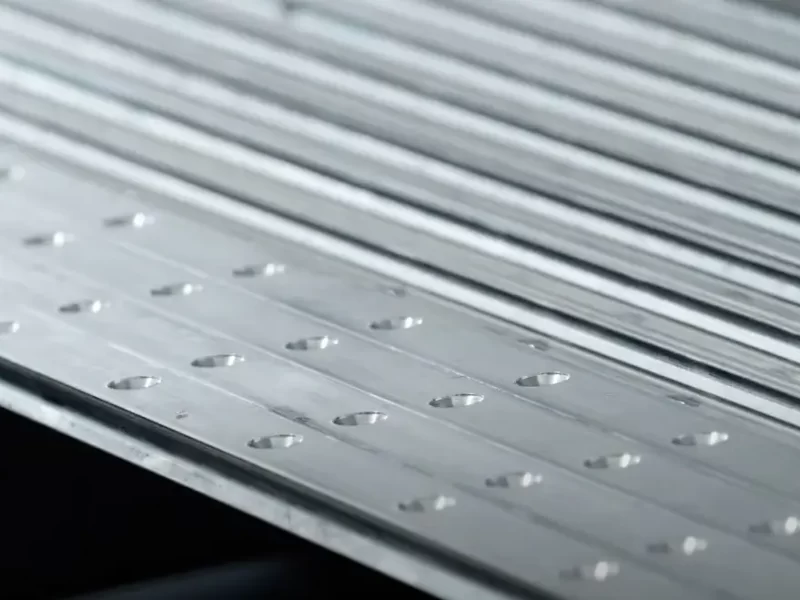

The Multi-Spindle Drilling Machine features multiple vertical spindles that effortlessly drill long workpieces. It automatically taps threads and countersinks, making it versatile for various applications and various lengths.
| Working range | |||
| Number of spindles | 1 | 2 | 4 |
| Pitch of spindles | - | 254 mm | 254 mm |
| Longitudinal travel of carriage (X) (customizable) | 6000 / 9000 mm | 6000 mm | 6000 mm |
| Max Length of workpiece (customizable) | 4200/ 7200 mm | 4200 mm | 4200 mm |
| X Position Accuracy (mm) | ±0,02 | ±0,02 | ±0,02 |
| Stroke of spindles (Z) (vertical) -(option: indipendent) | 500 | 300 | 300 mm |
| Z Position Accuracy (mm) | ±0,005 | ±0,005 | ±0,005 |
| Cross travel of spindles (Y) | 600 mm | 120 mm | 120 mm |
| Y Position Accuracy (mm) | ±0,005 | ±0,005 | ±0,005 |

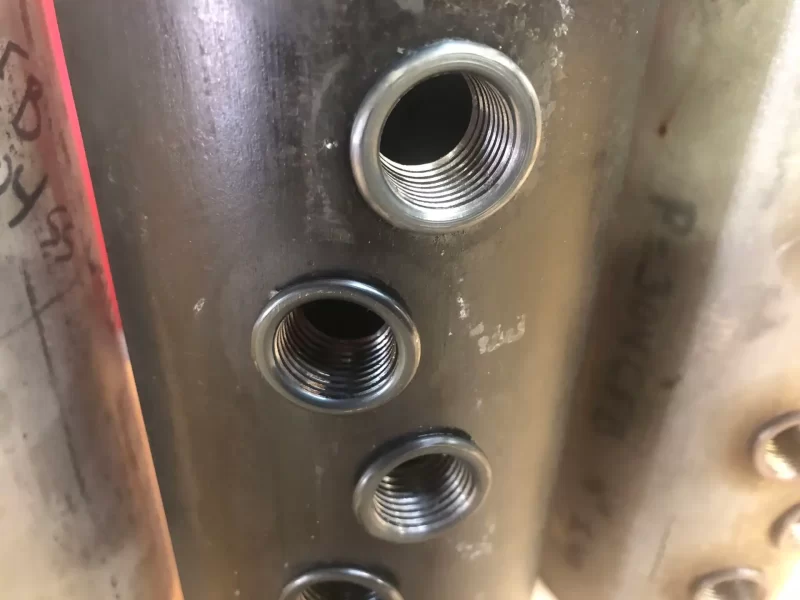

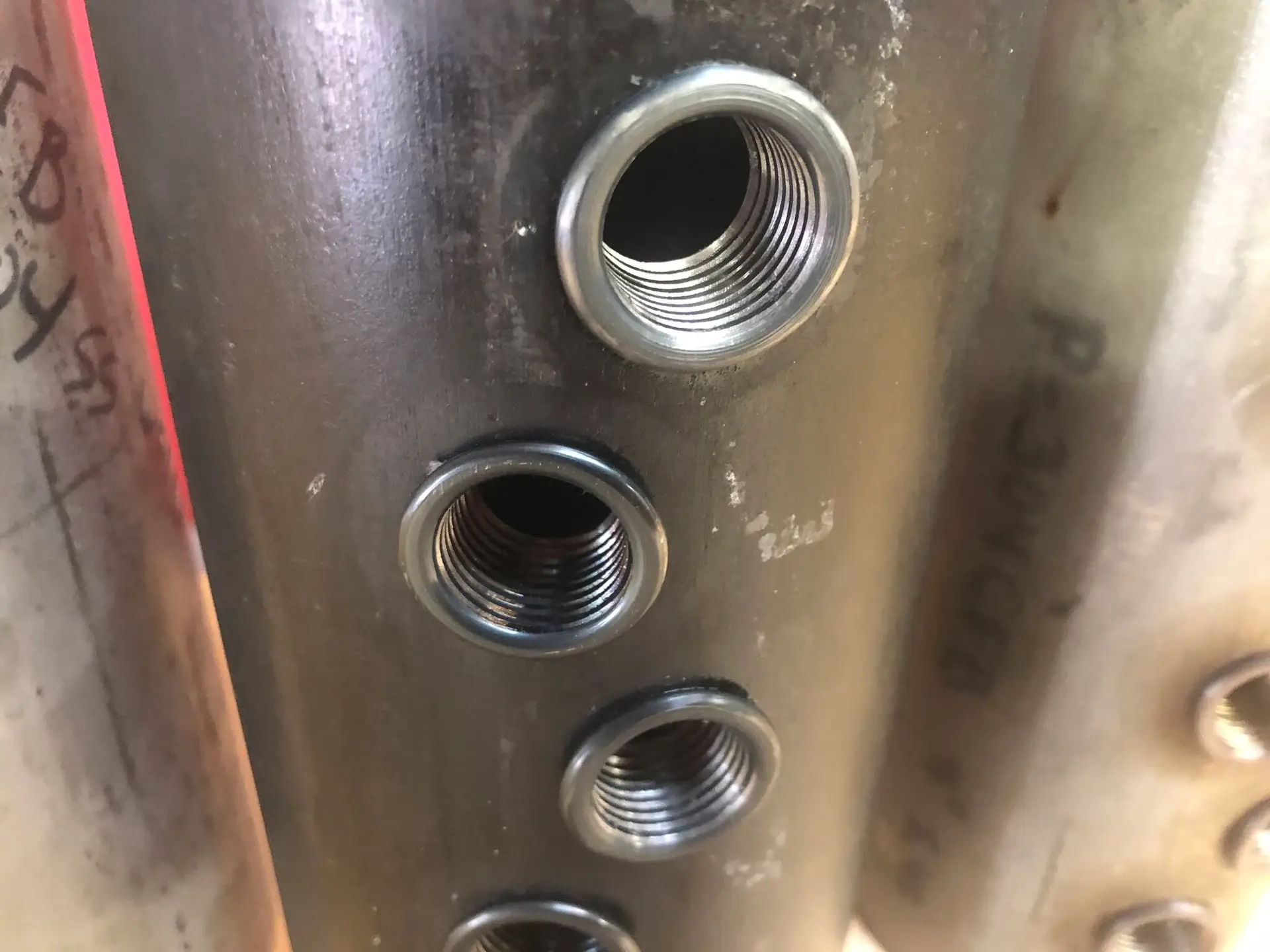

| Maximum size of the threaded hole | M20 | M12 | M12 |
| Power Spindle | 9/15 kW | 7,5/ 10 kW | 7,5/10 kW |
| Max Speeed Rotation | 5000 rpm | 5000 rpm | 5000 rpm |
| Connection Spindle | BT40 | ISO 40 | ISO 40 |

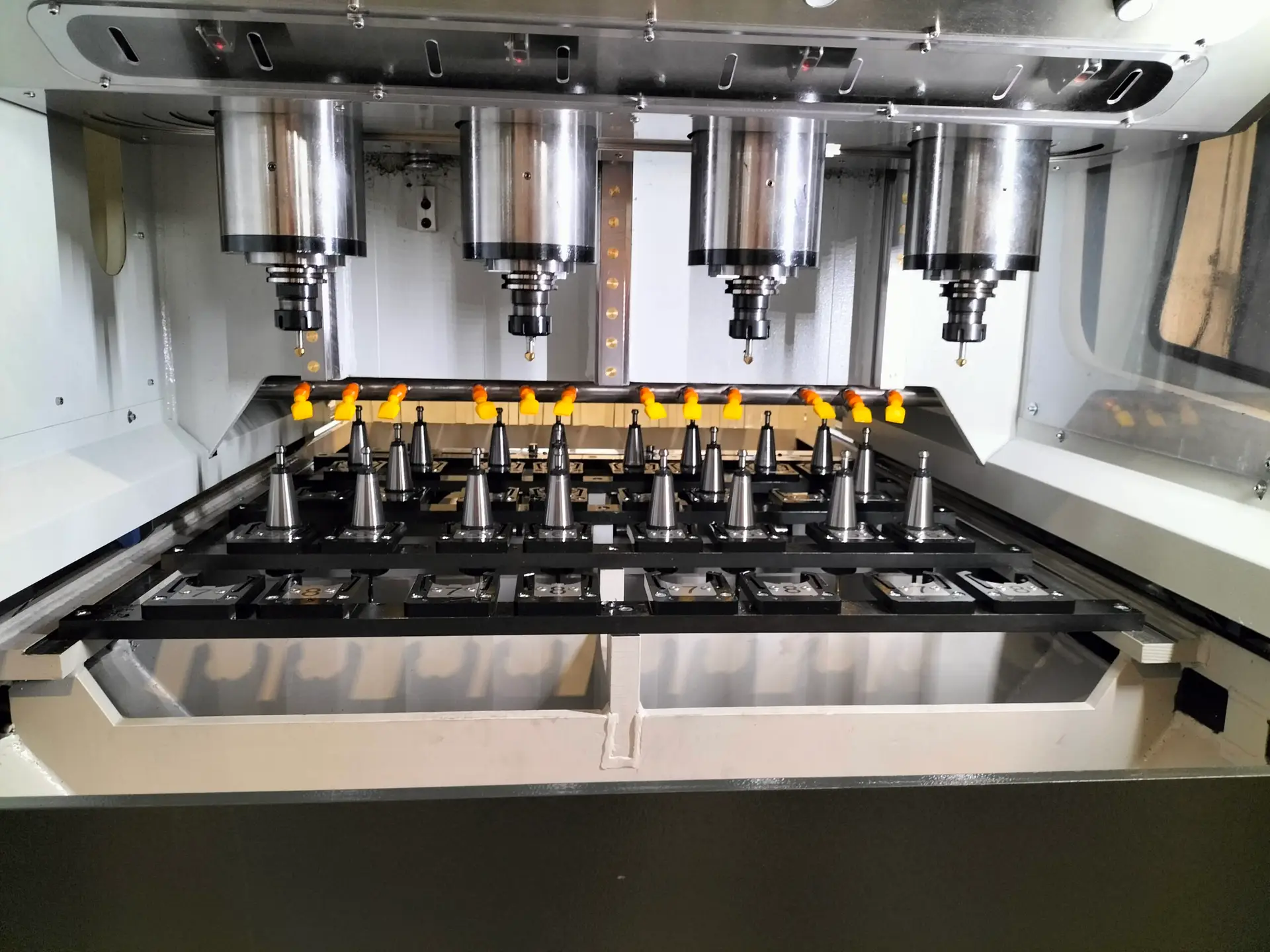

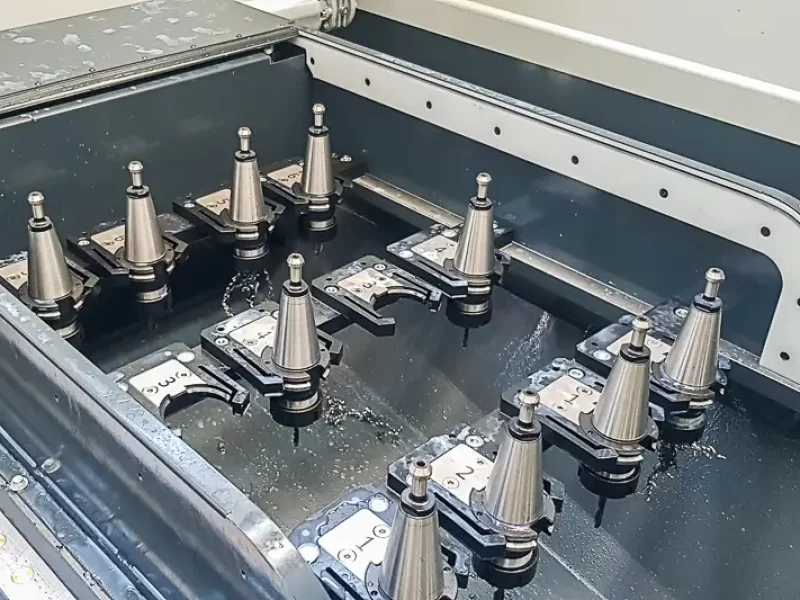

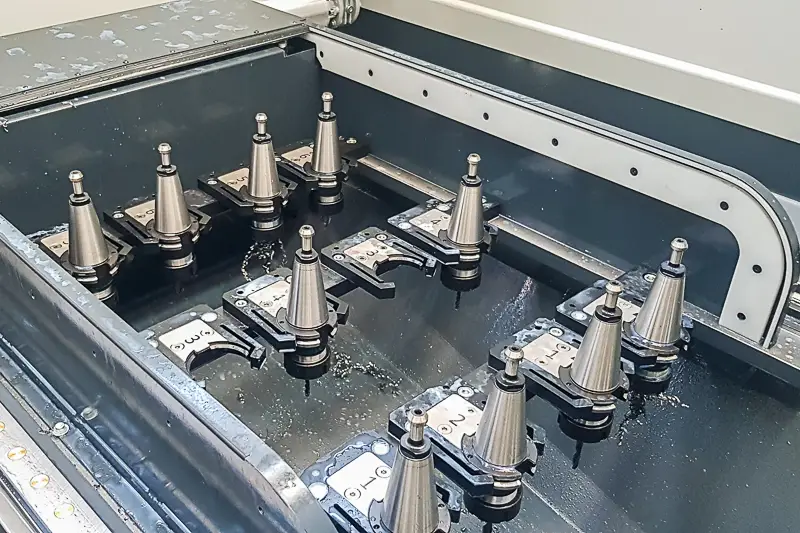

| Tool magazine: n° of tool per spindle | 20 | 7 | 7 |

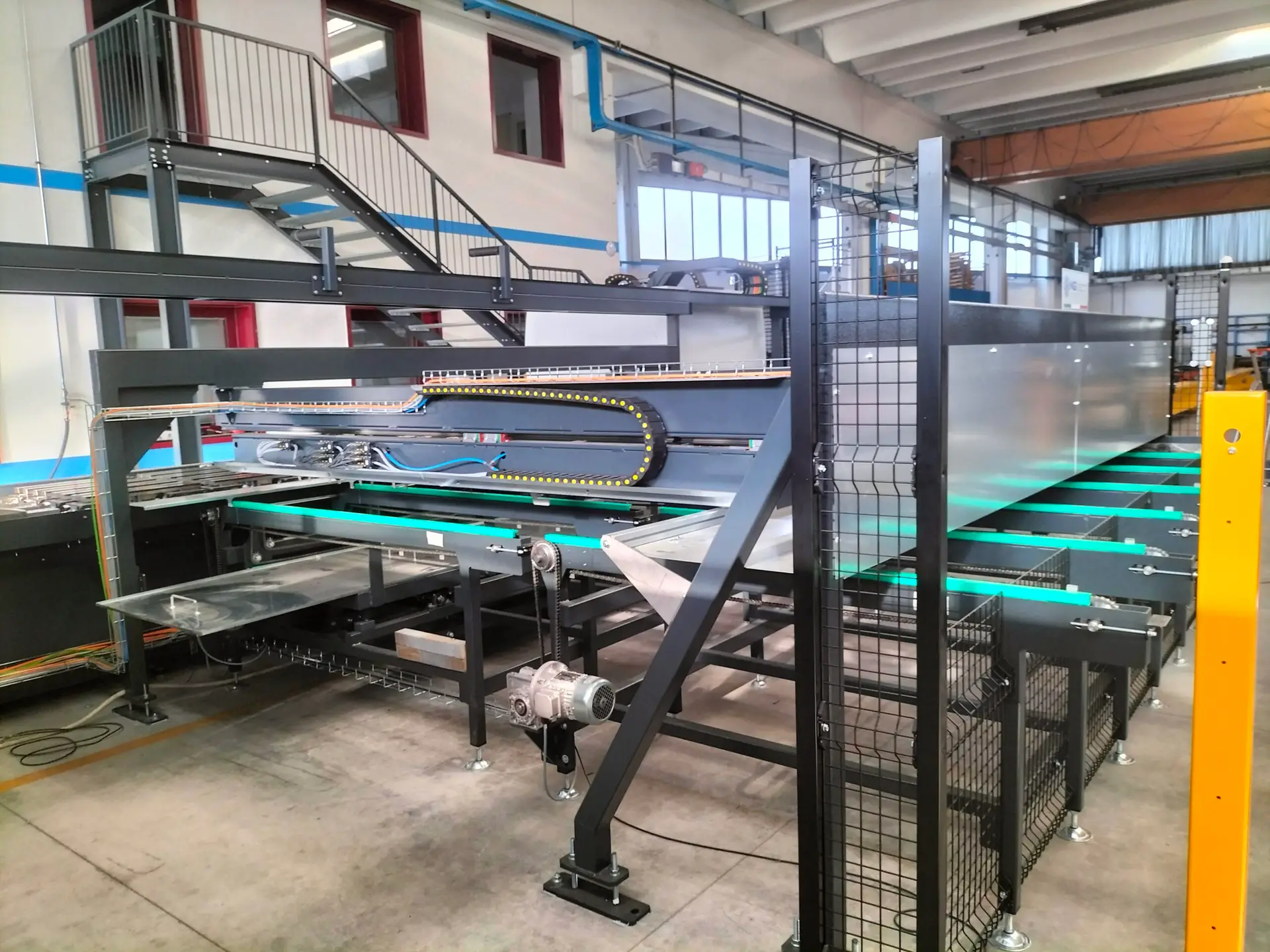

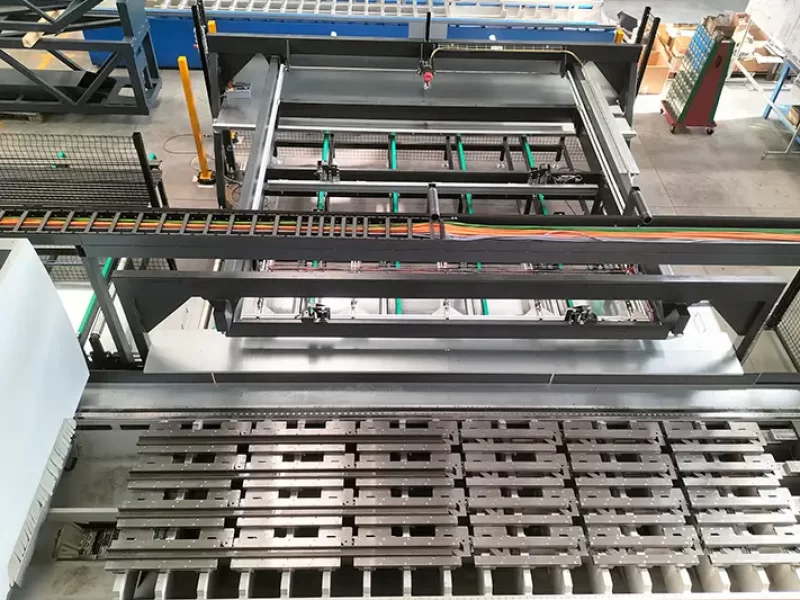

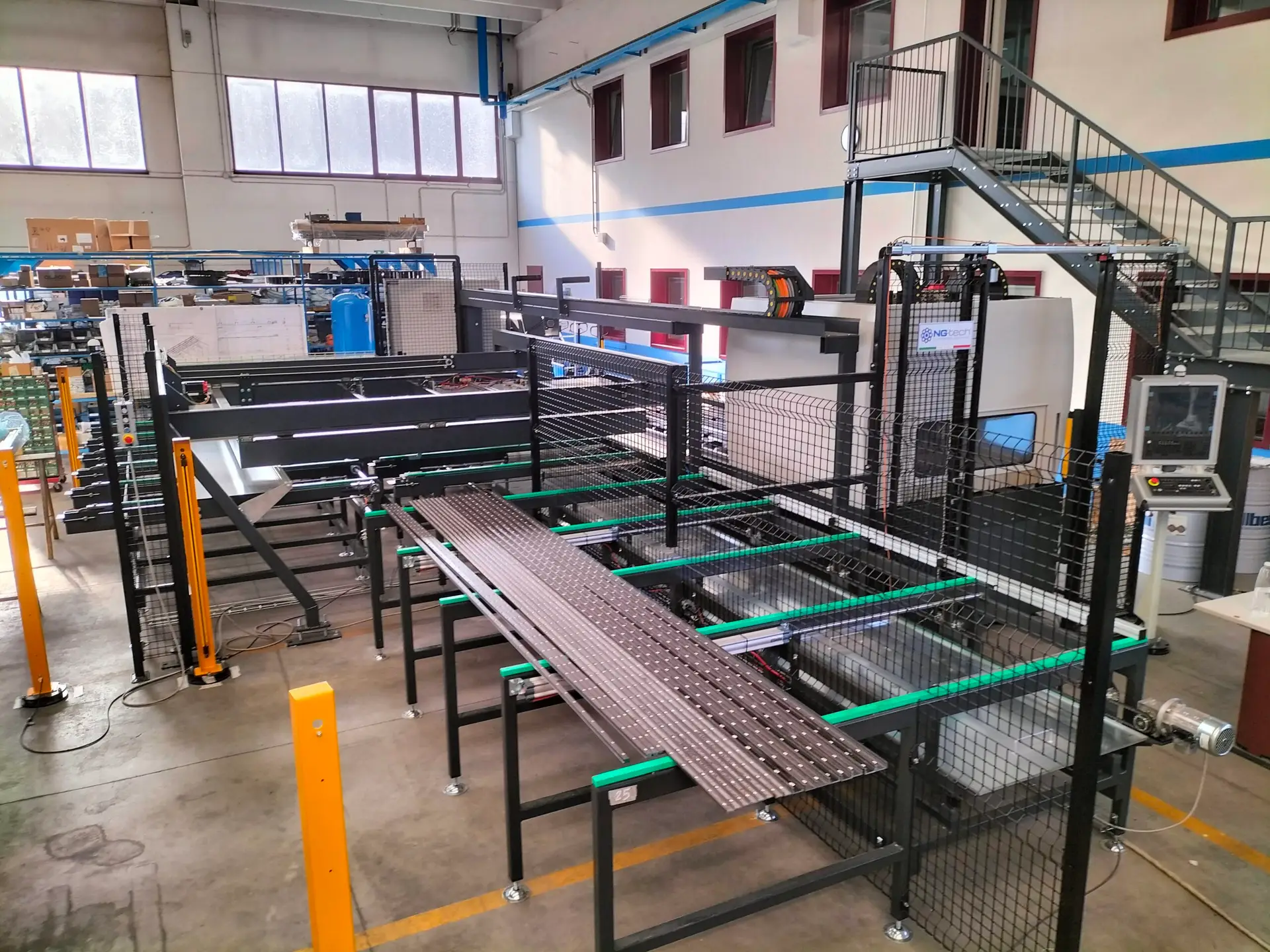

| Automation for loading & unloading | - | option | option |
A CNC vertical machining center is a versatile and highly precise machine tool used for milling, drilling, and machining complex metal components. By combining computer numerical control (CNC) technology with a vertical spindle configuration, these machines provide exceptional accuracy, repeatability, and production efficiency.
NG-Tech’s multispindle vertical machining center is engineered for manufacturers seeking to optimize productivity while maintaining strict machining tolerances. The advanced machine architecture allows multiple operations to be performed simultaneously, significantly reducing cycle times and improving overall manufacturing efficiency.
This solution is particularly suited for high-volume production environments where precision and consistency are essential.
A CNC vertical machining center (VMC) is a computer-controlled milling machine in which the spindle is positioned vertically relative to the worktable. This configuration allows the cutting tools to approach the workpiece from above, making it ideal for a wide range of machining operations.
Typical operations performed on a vertical machining center include:
Modern CNC vertical machining centers integrate advanced control systems that automate machining processes, improving both productivity and dimensional accuracy.
The key advantage of this NG-Tech machine is its multispindle configuration, which allows multiple machining operations to be performed simultaneously on the same workpiece.
This approach provides several benefits:
Multispindle machining centers are particularly effective in industries where large production volumes and repeatability are required.
Multiple spindles enable simultaneous machining operations, improving productivity and reducing cycle time.

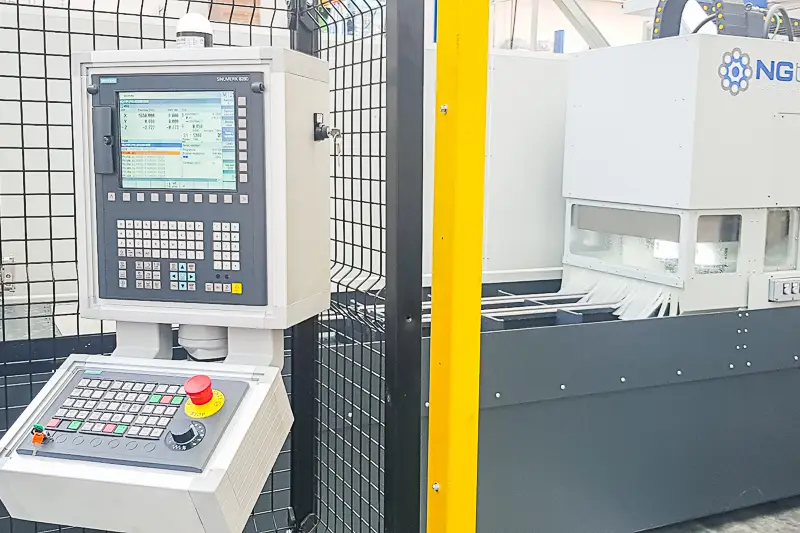

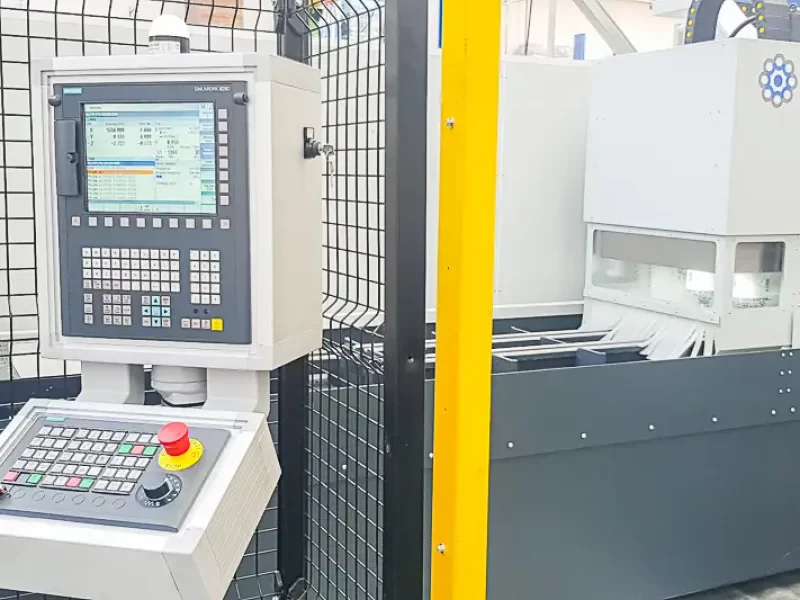

The integrated CNC controller ensures precise positioning, optimized machining paths, and consistent production quality.
A robust machine frame minimizes vibration and ensures stable cutting conditions even during demanding machining operations.
The machine can perform multiple operations in a single setup, including milling, drilling, and tapping.
Designed for industrial production environments where efficiency, reliability, and repeatability are critical.
CNC control ensures excellent dimensional accuracy and repeatability across production batches.
Multispindle machining enables faster processing and higher output compared to conventional machines.
Multiple operations can be performed without repositioning the workpiece, improving workflow efficiency.
Automation and optimized machining processes reduce labor requirements and operational costs.
Stable machining conditions help achieve high-quality surface finishes on machined components.
CNC vertical machining centers are widely used across many manufacturing sectors that require precision machining.
Machining engine components, transmission parts, structural components, and precision metal parts.
Producing complex aerospace components requiring tight tolerances and high-quality finishes.
Machining precision parts used in machinery, tooling systems, and mechanical assemblies.
Processing metal parts for industrial applications, equipment manufacturing, and custom fabrication.
The machining process in a vertical machining center typically includes several stages:
This automated workflow ensures repeatable results, efficient machining, and consistent product quality.
NG-Tech machines are designed to meet the demands of modern manufacturing facilities that require high-performance machining solutions.
Our CNC vertical machining centers offer:
With extensive experience in industrial machine design, NG-Tech provides solutions that help manufacturers improve productivity and machining efficiency.
Frequently Asked Questions (FAQs)
A vertical machining center has the spindle oriented vertically, making it ideal for milling, drilling, and precision machining operations on flat surfaces and complex parts.
Multispindle machines allow multiple operations to occur simultaneously, significantly increasing production speed and reducing machining time.
These machines are widely used in automotive, aerospace, industrial manufacturing, and precision engineering sectors.
